Modified Atmosphere Packaging (MAP) Machine

Vertical tray sealer, modified atmosphere packaging machine KBT-450，features high speed, easy operation, wide application range.

Email:

jasimagroup@gmail.com

Tel:

+86-15006685766

Inquire Now

Product Catalog

Still deciding? Get samples first, Contact US !

View similar products

Packaging

Tag list

Modified Atmosphere Packaging (MAP) Machine

Details

Product Description

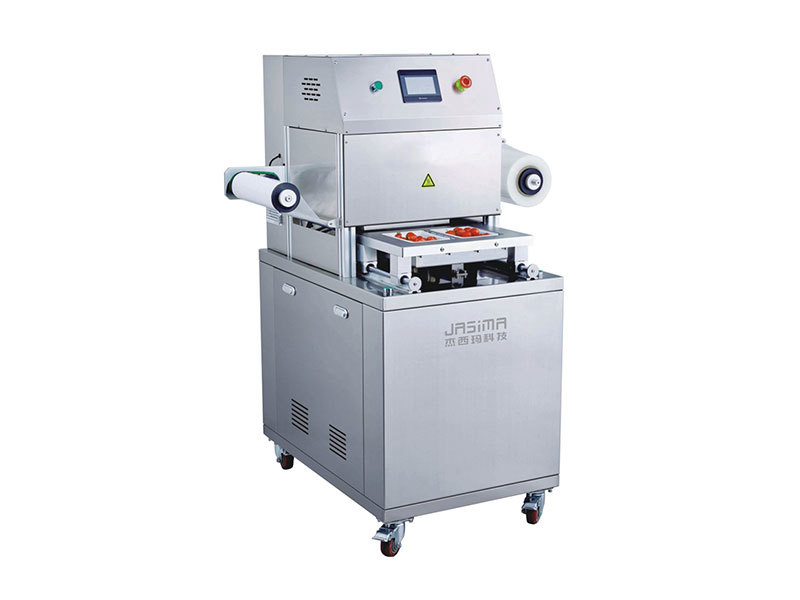

Vertical tray sealer, modified atmosphere packaging machine KBT-450，features high speed, easy operation, wide application range. It's ideal packaging solution for various containers, including plastic trays, cups, bowls, etc.The machine is widely used for packaging of ready to eat meal, meat products, seafood, vegetables, fruits, bakery products. Packaging method: MAP modified atmosphere packaging(nitrogen filling, mixed air filling); Sealing only function.

Specifications

Model No.	KBT450/1S	KBT450/2S
Tray maximum size	Customer provide
Film roll width（mm）	According to tray size
Film roll diameter max.（mm）	280mm
Speed (packs/hour)	300-400	500-600
Power supply	3 Phase, 380V/50HZ, can customize
Compressed air（Mpa）	0.6-0.8
Total power（kW）	7.5 kW
Vacuum pump	100 m³/h
Motor power of vacuum pump	2.2KW
Vacuum pump	Busch or Rietschle, 100
Gas replacement rate	≥ 99%
Residual oxygen	≤ 0.5%
Machine size (mm)	About 160016001650	About 180016001650
Machine weight (kg)	About 650	About 850

Modified Atmosphere Packaging (MAP) Machine

Vertical tray sealer, modified atmosphere packaging machine KBT-450，features high speed, easy operation, wide application range.

Email:

jasimagroup@gmail.com

Tel:

+86-15006685766

Inquire Now

Related Product

Still deciding? Get samples first, Contact US !

Tag list

Modified Atmosphere Packaging (MAP) Machine

Products Category

Packaging

Details

Specifications

Model No.	KBT450/1S	KBT450/2S
Tray maximum size	Customer provide
Film roll width（mm）	According to tray size
Film roll diameter max.（mm）	280mm
Speed (packs/hour)	300-400	500-600
Power supply	3 Phase, 380V/50HZ, can customize
Compressed air（Mpa）	0.6-0.8
Total power（kW）	7.5 kW
Vacuum pump	100 m³/h
Motor power of vacuum pump	2.2KW
Vacuum pump	Busch or Rietschle, 100
Gas replacement rate	≥ 99%
Residual oxygen	≤ 0.5%
Machine size (mm)	About 160016001650	About 180016001650
Machine weight (kg)	About 650	About 850

STRENGTH

Certification

FAQ

Can I see how the machine works in person？

Of course. You are welcomed to visit our factory along with your ingredients for free trial run. Professional technicians of technical support department will assist the operation throughout the process. Our technicians can make adjustment and consultation according to the needs of food products and the function of machines. You can acquire samples and operation skills from the test run for your references. Arrange a test run and tell us your needs via phone calls, emails or contact form below.

Is food automatic production suitable for beginners？

Of course. Skip the process of transformation, implementing automation to your production definitely worth the investment. Don’t worry. We have not only improved the machines but also the recipes of food products, actively developing over 15 new products every year. Saving you time and costs on researching and developing for automatic production. We provide turnkey solutions for both old and new customers with high quality food products and efficient production by multi-functional machines to boost their business.

Can I have a complete production line for my factory？

Of course. JASIMA Machinery provides all kinds of meat deep processing machines for production lines. Additionally, we have experiences in constructing production lines for factory tours. Provide us your needs via phone calls, emails or contact form below for more services.

How can I learn how to operate the machine？

After the machine arrived, we will have technician install the machine, carry out a trial run with your recipe, and demonstrate the operation, disassembling, and cleaning process for you to pick up quickly.
