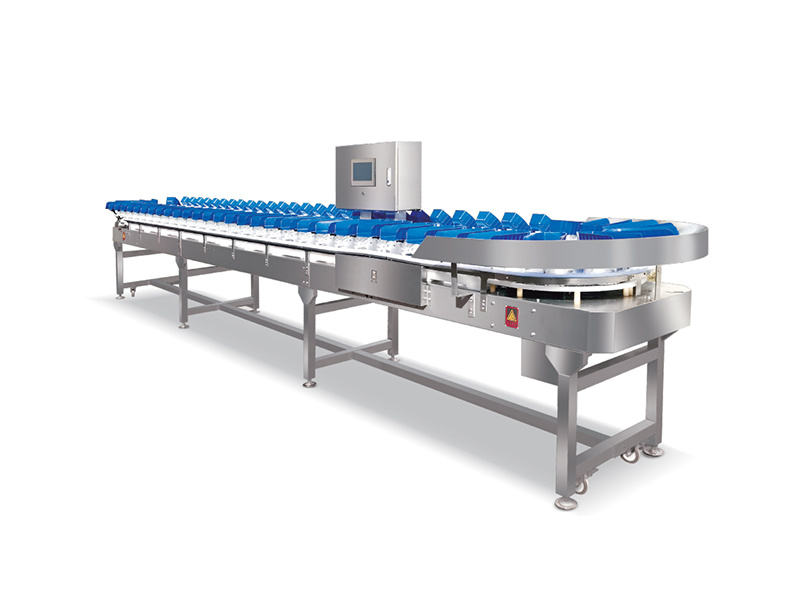

Rotary Tray Weight Grader- Large Tray
+
  • Rotary Tray Weight Grader- Large Tray

Share to

Rotary Tray Weight Grader- Large Tray

High Precision Loadcell.

Email:

jasimagroup@gmail.com

Tel:

+86-15006685766

Inquire Now
Product Catalog

Still deciding? Get samples first,  Contact US !

View similar products

Weighing,Grading & Batching

Tag list

Rotary Tray Weight Grader- Large Tray

  • Details

  • Tray—L1 Dimensions 29cm×13.5cm×8cm
    Tray—L2 Dimensions 35cm×15cm×8cm
    Tray—L3 Dimensions 41cm×10.5cm×5cm
    Tray—L304 Dimensions 38cm×22cm×8cm

    Features
    High Precision Loadcell.
    Automatic Zero Point Tracking.
    Advanced Algorithms, batching, counting can be supplied.
    Real time recording and reporting, HMI intuitive display.
    Frequency conversion control.
    Sturdy and robust design, user friendly.

    Specifications

    Model

    Grading speed (times/min)

    Tolerance (g)

    Weight range (g)

    Overall dimensions (mm)

    Power (W)

    Power Supply (V/HZ)

    Material

    WFH-06

    120-180

    ≤±10

    50-5000

    6400×1250×1750

    		1500AC220/50SUS304

    WFH-08

    120-180

    ≤±10

    50-5000

    7750×1250×1750

    WFH-10

    120-180

    ≤±10

    50-5000

    9100×1250×1750

    WFH-12

    120-180

    ≤±10

    50-5000

    10500×1250×1750

    WFH-18

    120-180

    ≤±10

    50-5000

    14700×1250×1750

    WFH-21

    120-180

    ≤±10

    50-5000

    16700×1250×1750

    WFH-24

    120-180

    ≤±10

    50-5000

    18800×1250×1750

Rotary Tray Weight Grader- Large Tray

High Precision Loadcell.

Email:

jasimagroup@gmail.com

Tel:

+86-15006685766

Inquire Now
Related Product

Still deciding? Get samples first,  Contact US !

Tag list

Rotary Tray Weight Grader- Large Tray

Products Category

Weighing,Grading & Batching

  • Details

  • Tray—L1 Dimensions 29cm×13.5cm×8cm
    Tray—L2 Dimensions 35cm×15cm×8cm
    Tray—L3 Dimensions 41cm×10.5cm×5cm
    Tray—L304 Dimensions 38cm×22cm×8cm

    Features
    High Precision Loadcell.
    Automatic Zero Point Tracking.
    Advanced Algorithms, batching, counting can be supplied.
    Real time recording and reporting, HMI intuitive display.
    Frequency conversion control.
    Sturdy and robust design, user friendly.

    Specifications

    Model

    Grading speed (times/min)

    Tolerance (g)

    Weight range (g)

    Overall dimensions (mm)

    Power (W)

    Power Supply (V/HZ)

    Material

    WFH-06

    120-180

    ≤±10

    50-5000

    6400×1250×1750

    		1500AC220/50SUS304

    WFH-08

    120-180

    ≤±10

    50-5000

    7750×1250×1750

    WFH-10

    120-180

    ≤±10

    50-5000

    9100×1250×1750

    WFH-12

    120-180

    ≤±10

    50-5000

    10500×1250×1750

    WFH-18

    120-180

    ≤±10

    50-5000

    14700×1250×1750

    WFH-21

    120-180

    ≤±10

    50-5000

    16700×1250×1750

    WFH-24

    120-180

    ≤±10

    50-5000

    18800×1250×1750

STRENGTH

jasima strenth
jasima strenth
jasima strenth
jasima strenth
jasima strenth
jasima strenth

Certification

FAQ

q

Can I see how the machine works in person？

a
Of course. You are welcomed to visit our factory along with your ingredients for free trial run. Professional technicians of technical support department will assist the operation throughout the process. Our technicians can make adjustment and consultation according to the needs of food products and the function of machines. You can acquire samples and operation skills from the test run for your references. Arrange a test run and tell us your needs via phone calls, emails or contact form below.
q

Is food automatic production suitable for beginners？

a
Of course. Skip the process of transformation, implementing automation to your production definitely worth the investment. Don’t worry. We have not only improved the machines but also the recipes of food products, actively developing over 15 new products every year. Saving you time and costs on researching and developing for automatic production. We provide turnkey solutions for both old and new customers with high quality food products and efficient production by multi-functional machines to boost their business.
q

Can I have a complete production line for my factory？

a
Of course. JASIMA Machinery provides all kinds of meat deep processing machines for production lines. Additionally, we have experiences in constructing production lines for factory tours. Provide us your needs via phone calls, emails or contact form below for more services.
q

How can I learn how to operate the machine？

a
After the machine arrived, we will have technician install the machine, carry out a trial run with your recipe, and demonstrate the operation, disassembling, and cleaning process for you to pick up quickly.
