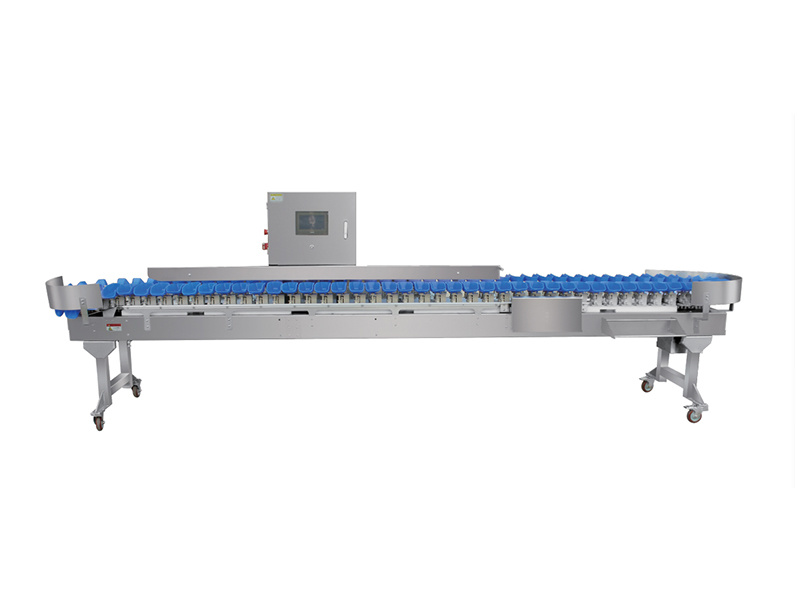

Rotary Tray Weight Grader- Small Tray

Details

Tray—S1 Dimensions 19cm×8.5cm×4cm
Tray—S2 Dimensions 19cm×9cm×5.5cm
Tray—S3 Dimensions 20cm×9.5cm×4.5cm
Tray—S4 Dimensions 14.5cm×14cm×4.5cm
Tray—S5 Dimensions 18cm×13.5cm×4.5cm
Tray—S6 Dimensions 19cm×12cm×4.5cm
Tray—S7 Dimensions 22cm×12.5cm×5cm
Tray—S8 Dimensions 23cm×11.5cm×5cm

Features
1. High-precision load cell and automatic zero tracking system ensure accurate and reliable weighing data.
2. Lekon grader can store a variety of product data, suitable for various items that need to be sorted by weight.
3. Factory parameter setting recovery function, user can set multi-stage weight calibration.
4. Frequency conversion control, easy to adjust speed, batching, counting can be supplied.
5. HMI touchscreen to manage the process, intuitive display, user friendly, accurate performance.
6. Robust fully stainless steel 304/316L wash-down construction, easy to clean, easy to move.
7. Different size trays are available for various applications, like fillets, legs, wings, drumsticks, fish, oyster etc, S1-S8 trays available.

Specifications

Model	Grading speed (times/min)	Accuracy (g)	Weight range (g)	Overall dimensions (mm)	Power (W)	Power Supply (V/Hz)
WFH-05S	320-420	0.1	5-500	3200×1000×1470	200 W	AC220/50 (customized)
WFH-06S	320-420	0.1	50-500	3600×1000×1500
WFH-08S	320-420	0.1	50-500	4600×1000×1500
WFH-10S	320-420	0.1	50-500	5200×1000×1470	400 W
WFH-12S	320-420	0.1	50-500	6600×1000×1470	400 W

Rotary Tray Weight Grader- Small Tray

High-precision load cell and automatic zero tracking system ensure accurate and reliable weighing data.

Email:

jasimagroup@gmail.com

Tel:

+86-15006685766

Inquire Now

Related Product

Still deciding? Get samples first, Contact US !

Tag list

Rotary Tray Weight Grader- Small Tray

Products Category

Weighing,Grading & Batching

Details

Specifications

Model	Grading speed (times/min)	Accuracy (g)	Weight range (g)	Overall dimensions (mm)	Power (W)	Power Supply (V/Hz)
WFH-05S	320-420	0.1	5-500	3200×1000×1470	200 W	AC220/50 (customized)
WFH-06S	320-420	0.1	50-500	3600×1000×1500
WFH-08S	320-420	0.1	50-500	4600×1000×1500
WFH-10S	320-420	0.1	50-500	5200×1000×1470	400 W
WFH-12S	320-420	0.1	50-500	6600×1000×1470	400 W

STRENGTH

Certification

FAQ

Can I see how the machine works in person？

Of course. You are welcomed to visit our factory along with your ingredients for free trial run. Professional technicians of technical support department will assist the operation throughout the process. Our technicians can make adjustment and consultation according to the needs of food products and the function of machines. You can acquire samples and operation skills from the test run for your references. Arrange a test run and tell us your needs via phone calls, emails or contact form below.

Is food automatic production suitable for beginners？

Of course. Skip the process of transformation, implementing automation to your production definitely worth the investment. Don’t worry. We have not only improved the machines but also the recipes of food products, actively developing over 15 new products every year. Saving you time and costs on researching and developing for automatic production. We provide turnkey solutions for both old and new customers with high quality food products and efficient production by multi-functional machines to boost their business.

Can I have a complete production line for my factory？

Of course. JASIMA Machinery provides all kinds of meat deep processing machines for production lines. Additionally, we have experiences in constructing production lines for factory tours. Provide us your needs via phone calls, emails or contact form below for more services.

How can I learn how to operate the machine？

After the machine arrived, we will have technician install the machine, carry out a trial run with your recipe, and demonstrate the operation, disassembling, and cleaning process for you to pick up quickly.
