Chicken Nugget Production Overview

Chicken nuggets have become a staple in many households and restaurants, thanks to their convenience and taste. The production of chicken nuggets involves several steps, from raw material preparation to frying and packaging. A dedicated production line designed for processing 500 kilograms of chicken nuggets in a single batch can significantly streamline this process.

Key Components of the Production Line

The 500kg frying chicken nugget production line comprises several critical components:

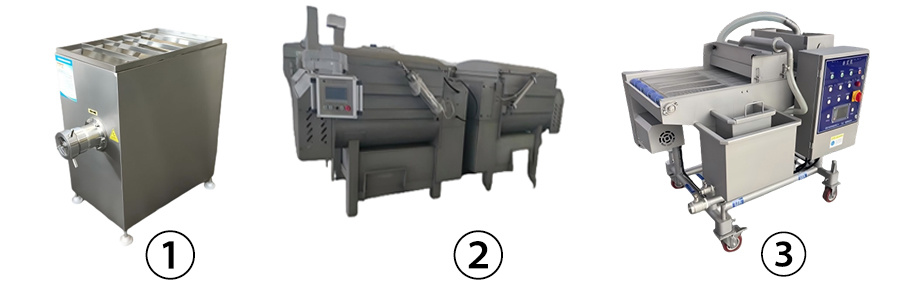

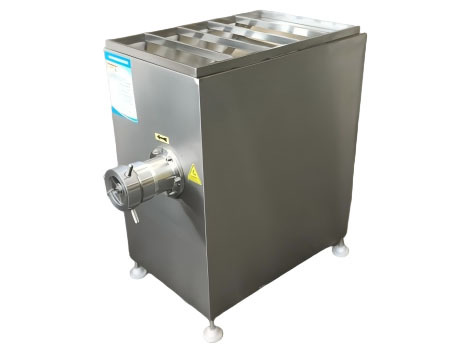

1. Raw Material Preparation--Grinder .

The production line begins with the careful selection and preparation of raw materials. High-quality chicken meat, typically breast or thigh meat, is sourced and inspected for freshness. The meat is then cut into uniform pieces .We need to use a meat grinder to grind it into minced meat.

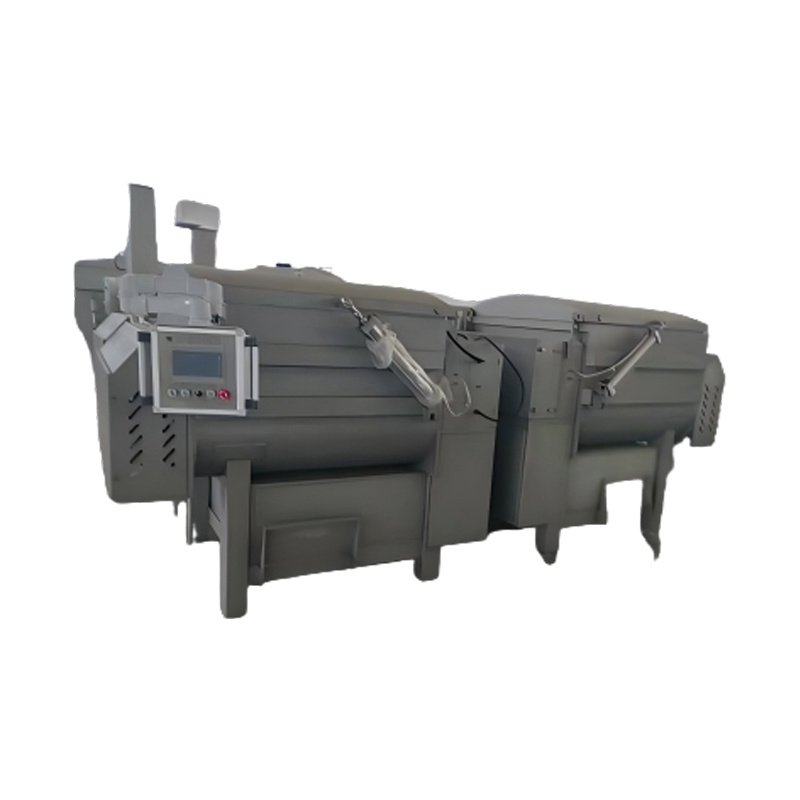

2. Marination--Vacuum Mixer:

The next step involves marinating the chicken pieces. A blend of spices, salt, and other flavorings is mixed with the chicken to enhance its taste. This process can take several hours to allow the flavors to penetrate the meat thoroughly.In this process,we can use vacuum mixer to achieve this purpose.

3.Forming--Chicken Nugget Forming.This fully automatic meat patté forming machine automatically completes filling, shaping, and output processes. It is suitable for a wide range of materials and employs bidirectional twin-screw feeding to minimize tissue damage. The system boasts high production capacity and stable performance. Compatible with various coating equipment, it enables the production of products with diverse appearances, textures, and flavors. The product mold can be easily replaced, featuring versatile specifications and shapes.

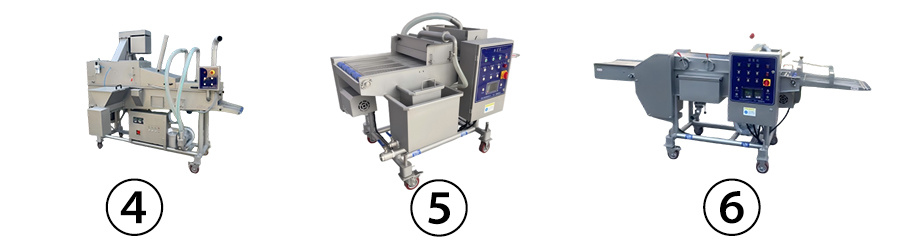

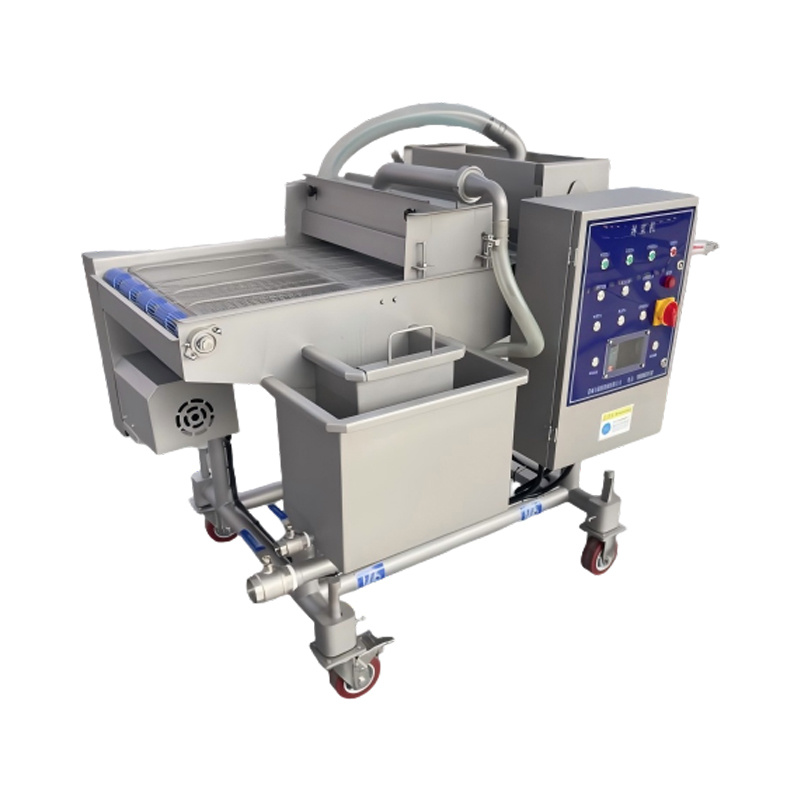

4. Slurry--Batter Sparying Machine.

The slurry pump showers the slurry from the top to form a slurry curtain.The product is coated with slurry as it passes through the slurry curtain, and excess slurry is collected at the bottom for reuse. This method is suitable for slurry with relatively low viscosity and can form a thin slurry layer uniformly on the surface of the product.

5.Powdering-Tunnel Flouring Machinie

Materials enter the tunnel via conveyor belts. Powder is evenly coated with pre-coated or blended powder through pneumatic or mechanical spraying systems, assisted by vibrating screens to enhance material penetration. Excess powder is recycled through a closed-loop system. The product coating process ensures uniform distribution of both pre-coated and surface-dusted powders across the material as it moves along the conveyor mesh belt. This method is particularly suitable for food products requiring regular shapes or high flatness specifications.

6. Slurry--Batter Immersion  Machine

The product is placed on the conveyor belt, which carries the product slowly through the slurry tank, so that the product is coated with slurry, which is suitable for different thickness and viscosity of slurry.

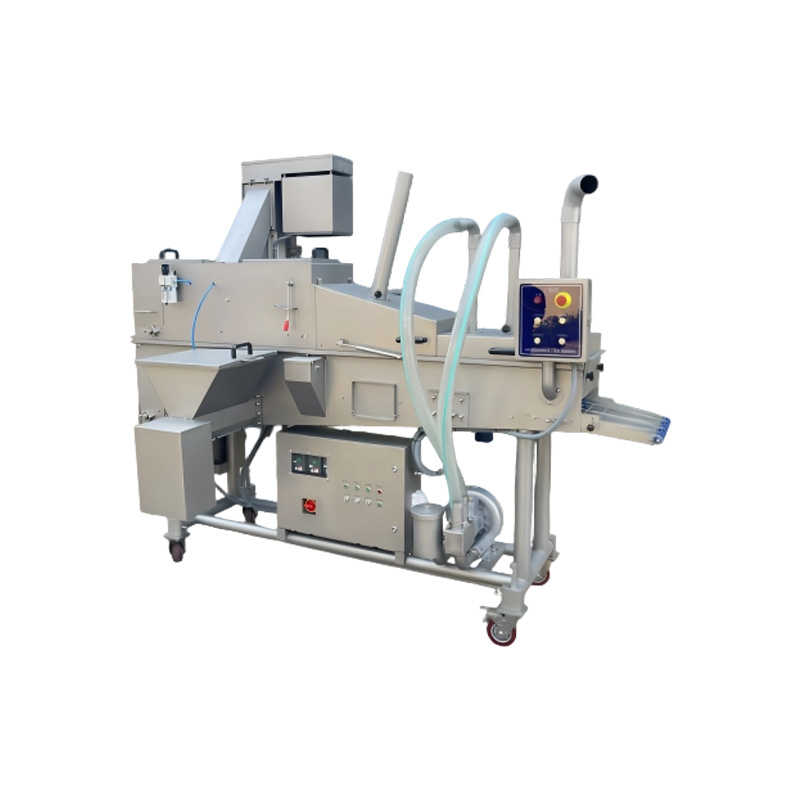

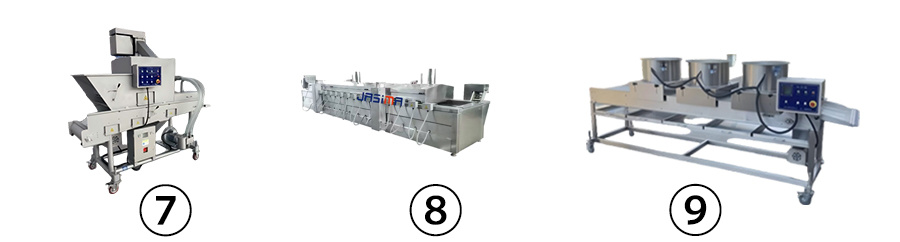

7. Husk Machine --Breading Machine

The bread coating machine automatically completes the process of applying breadcrumbs to products, including fine flour, coarse flour, and snowflake flakes. After coating, the product enters the lower mesh belt, which is covered with breadcrumbs at the bottom and sides. Bread crumbs flowing from the feeding hopper cover the product's upper surface. The pressure rollers compact the coating (the thickness of bread crumbs on both mesh belts can be conveniently adjusted), ensuring thorough coverage. The coated product then passes through a wind shower to blow off excess crumbs. Multiple adjustable positions effectively control the amount of breadcrumbs.  As  a  pre-processing  equipment  in  fried  food  manufacturing,  this  machine  protects  the products  while  enhancing  their  color  and  flavor,  making  it  an  indispensable  component  in  fried  food production.

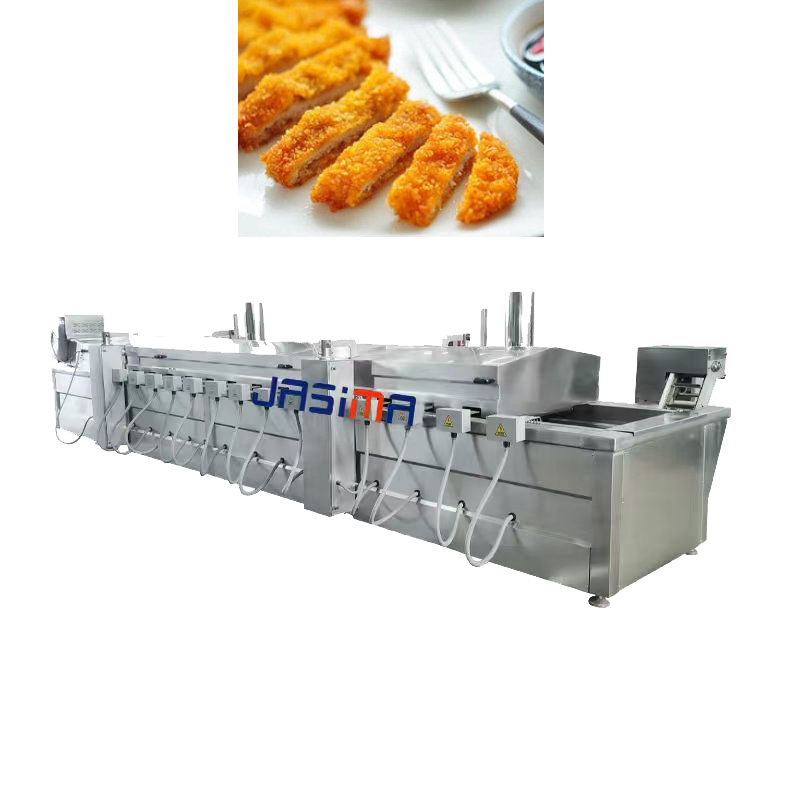

8.Continuous Fryer--Frying Machine

The equipment utilizes a pure oil frying process, featuring a dynamic bottom skimming filtration system with a recirculation mechanism that automatically filters and discharges residues during operation to ensure oil quality. Constructed entirely from 304-grade premium stainless steel, it includes an automatic lifting system for efficient cleaning and maintenance. A dual-net conveyor belt prevents uneven frying of fries due to insufficient floating, with both upper and lower mesh belts equipped with variable frequency drive (VFD) speed control. The system is also fitted with a carbon dioxide fire suppression device.

9.Cooling-- Oil Free Cooling Machine

The cooling machine is used for draining oil and cooling after frying.After frying, the nuggets are rapidly cooled to halt the cooking process and preserve their texture. This cooling phase is essential to prevent sogginess and maintain the quality of the product.

10.Packing-Different Packing Machine

Packaging**: Finally, the cooled chicken nuggets are packaged in airtight containers or vacuum-sealed bags to ensure freshness and extend shelf life. Proper packaging is essential for maintaining the quality of the product during storage and transportation.

The operational workflow of the 500kg frying chicken nugget production line is designed for maximum efficiency. Each stage of production is interconnected, allowing for a seamless transition from one process to the next. For instance, as one batch of chicken is marinating, another batch can be breaded and fried. This overlapping of processes minimizes downtime and maximizes output.

Automation plays a significant role in this production line. Advanced machinery can handle tasks such as cutting, breading, and frying with precision and speed. This not only increases production capacity but also reduces the risk of human error, ensuring consistent product quality.

Advantages of a 500kg Production Line

Investing in a 500kg frying chicken nugget production line offers several advantages:

1. High Efficiency: The ability to process large quantities of chicken nuggets in a single batch reduces production time and labor costs. This efficiency is particularly beneficial for businesses looking to meet high demand.

2. Consistent Quality: Automated processes help maintain uniformity in the size and shape of the nuggets. This consistency is crucial for brand reputation and customer satisfaction.

3. Scalability: A production line of this capacity can be scaled up or down depending on market demand. This flexibility allows businesses to adjust their production levels without significant investment in new equipment.

4. Cost-Effectiveness: By streamlining the production process and reducing labor costs, businesses can achieve higher profit margins. Additionally, the use of high-quality ingredients can lead to better sales and customer loyalty.

The 500kg frying chicken nugget production line represents a significant advancement in food processing technology. With its efficient workflow, automated processes, and commitment to quality, this production line can meet the growing demand for chicken nuggets in today's market. As businesses continue to invest in such technologies, the focus on food safety and quality assurance will remain paramount, ensuring that consumers receive safe and delicious products. The future of chicken nugget production looks bright, and with it comes the promise of innovation and excellence in the food industry.
